01Clamshell Bucket
High-strength steel and quality cylinders provide dependable digging force, with hydraulic rotation or vertical-lift options.
Explore product ↗Screen / crush / recover

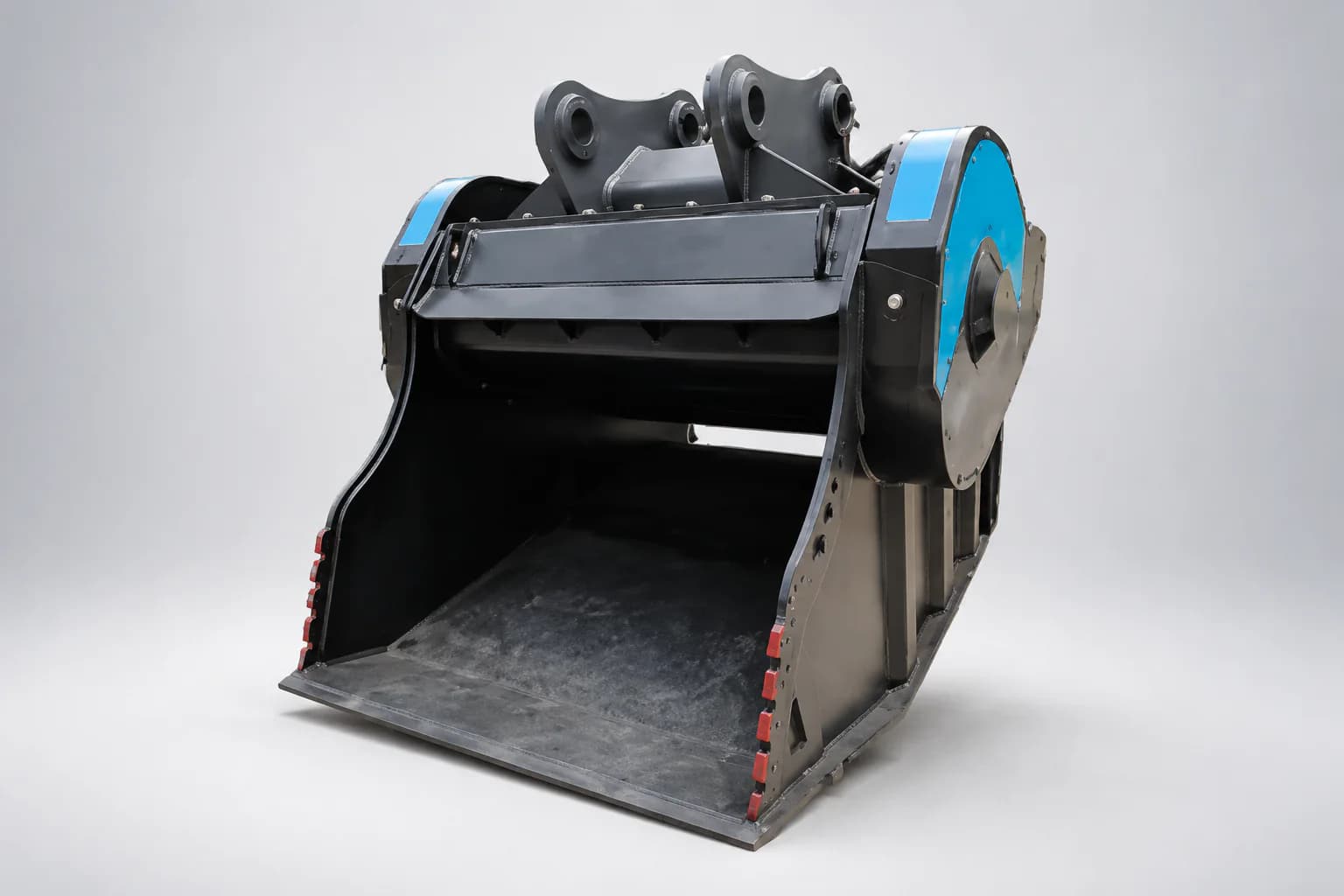

Bucket Crusher
Reversible jaw plates and direct hydraulic drive recycle concrete and reduce quarry or mine material on site.
Key range20–45 t excavators · 15–120 mm outlet
Working brief
ENGINEERED AROUND THE CARRIER, MATERIAL AND DUTY CYCLE.
Typical applications
- Concrete recycling
- Quarrying
- Mine material
Configuration inputs
- Carrier make, model and operating weight
- Pin diameter, pin centers and dipper width
- Hydraulic flow and pressure where required
- Material, duty cycle and wear expectations
01Machine match
Geometry starts with the exact carrier interface.
02Material system
Structural and wear plate are selected for the duty.
03Production review
Critical dimensions are confirmed before export packing.
What excavator size is required for the crusher bucket?
The published carrier range is 20–45 tonnes. The final match must also confirm available hydraulic flow and pressure, carrier stability, coupler geometry and lifting capacity.
What finished material size can the bucket crusher produce?
The listed outlet range is 15–120 mm. Actual output and throughput depend on feed size, reinforcement, material strength, moisture and the selected jaw setting.
Can the crusher bucket process reinforced concrete?
It can be configured for concrete recycling, but incoming rebar size and density must be reviewed. Oversized or tangled steel should be separated when it can obstruct feeding or discharge.
Same product family
More on-site processing
Request configuration
PUT BUCKET CRUSHER TO WORK ON YOUR MACHINE.
Share the carrier, working material and jobsite requirements. We will review the machine match and required configuration before preparing a project quote.
