Crusher guide · 7 min read

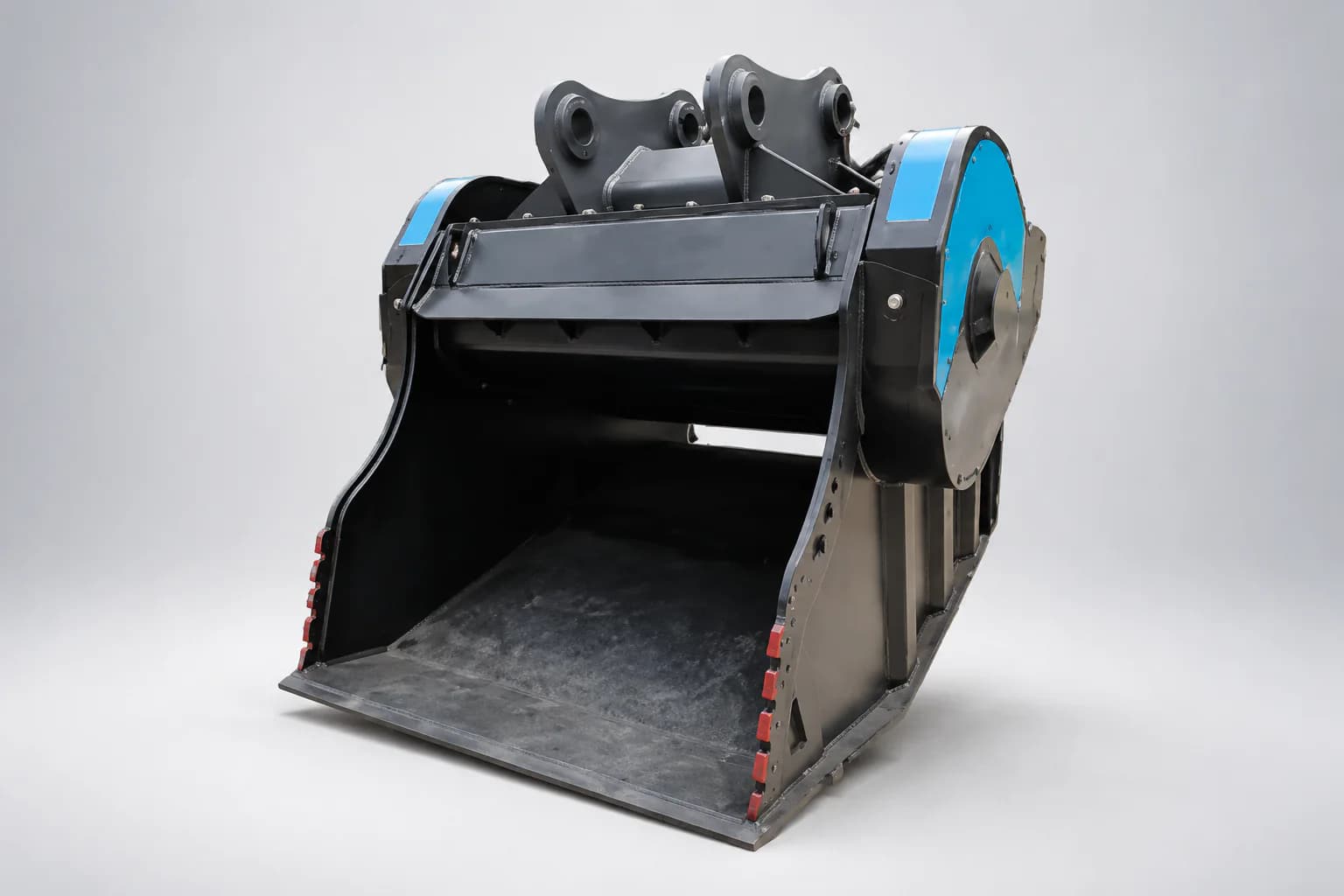

Concrete Crusher Bucket for Excavators

Check carrier hydraulics, concrete feed, reinforcement and target output before selecting an excavator crusher bucket.

Concrete Crusher Bucket for Excavators

A crusher bucket can reduce suitable concrete and mineral material at the jobsite, but carrier match and feed preparation determine whether it produces efficiently. Treat reinforcement, feed size and desired outlet as core selection inputs.

01

Describe the incoming concrete

Record the largest feed dimension, concrete strength, shape and the amount of embedded reinforcement. Oversized or tangled steel can obstruct feeding and should be separated where practical.

  • Maximum feed size
  • Concrete strength and thickness
  • Rebar diameter and spacing
  • Contamination and moisture
02

Set the required output

Define whether the crushed material will be used as fill, road base, bedding or feed for another process. The published PINSHENG crusher-bucket outlet range is 15–120 mm, subject to the selected setting and material.

  • Target outlet size
  • Acceptable oversize
  • Required throughput
  • Downstream reuse
03

Verify the carrier and hydraulics

The published carrier range is 20–45 tonnes. Final selection still requires operating weight, lift capacity, hydraulic flow and pressure, coupler pickup and hose connection details.

  • Carrier make, model and operating weight
  • Usable flow and working pressure
  • Coupler and pin dimensions
  • Return line and hose standard
04

Plan the working sequence

Crusher buckets are most effective when material can be prepared, loaded and discharged without repeated rehandling. Review dust, noise, exclusion zones and local operating requirements before work begins.

  • Feed preparation
  • Safe loading position
  • Discharge and stockpile layout
  • Inspection and wear-part access
FAQ

COMMON BUYER QUESTIONS

What size excavator is needed for a concrete crusher bucket?

The PINSHENG bucket-crusher range is published for 20–45 tonne excavators. The exact match also depends on hydraulic capacity, lifting limits, coupler geometry and the density of the feed.

Can a crusher bucket process reinforced concrete?

It can be configured for concrete recycling, but reinforcement must be described. Large or tangled steel can obstruct the jaw and may need pre-separation.

What output size can an excavator crusher bucket make?

The published adjustable outlet range is 15–120 mm. Actual grading and throughput depend on the feed, jaw setting, wear condition and operating cycle.

Next step

TURN THE GUIDE INTO A CONFIGURATION ENQUIRY.

Add the carrier make, model and operating weight, interface dimensions, material and required task to your brief. After your enquiry is successfully stored, PINSHENG checks compatibility and prepares a quote.

What happens after you submit

Use the enquiry form to include the carrier make, model and operating weight; pin diameter, pin centers and dipper width; working material, destination country and target date. For hydraulic attachments, add flow and pressure.

After your enquiry is successfully stored, the form shows “Enquiry received”. PINSHENG will review the machine, interface, material and hydraulic details before preparing a quote.
